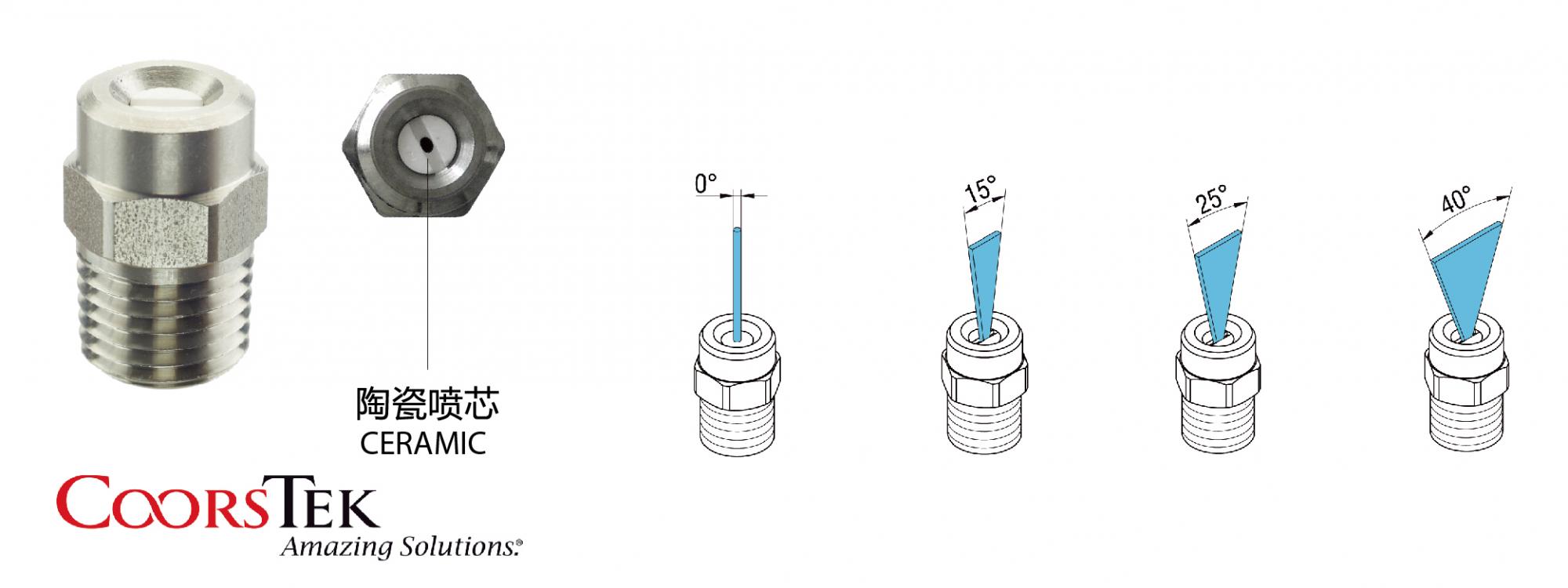

噴嘴（陶瓷噴芯）最大壓力350bar
|
編號 |
流量 |
最大壓力 |
進水口 |
角度 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
124002000 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
2 |
|
124002100 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
25 |
|
124002200 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
3 |
|
124002300 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
35 |
|
124002400 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
4 |
|
124002500 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
45 |
|
124002600 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
5 |
|
124002700 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
55 |
|
124002800 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
6 |
|
124002900 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
65 |
|
124003000 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
7 |
|
124003100 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
75 |
|
124003200 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
8 |
|
124003300 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
9 |
|
|
||||||
|
124002110 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
25 |
|
124002210 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
3 |
|
124002310 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
35 |
|
124002410 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
4 |
|
124002510 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
45 |
|
124002610 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
5 |
|
124002710 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
55 |
|
124002810 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
6 |
|
124002910 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
65 |
|
124003010 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
7 |
|
124003110 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
75 |
|
124003210 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
8 |
|
124003310 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
9 |
|
|
||||||
|
124002120 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
25 |
|
124002220 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
3 |
|
124002320 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
35 |
|
124002420 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
4 |
|
124002520 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
45 |
|
124002620 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
5 |
|
124002720 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
55 |
|
124002820 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
6 |
|
124002920 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
65 |
|
124003020 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
7 |
|
124003120 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
75 |
|
124003220 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
8 |
|
124003320 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
9 |
|
|
||||||
|
124002130 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
25 |
|
124002230 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
3 |
|
124002330 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
35 |
|
124002430 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
4 |
|
124002530 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
45 |
|
124002630 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
5 |
|
124002730 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
55 |
|
124002830 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
6 |
|
124002930 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
65 |
|
124003030 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
7 |
|
124003130 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
75 |
|
124003230 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
8 |
|
124003330 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
9 |

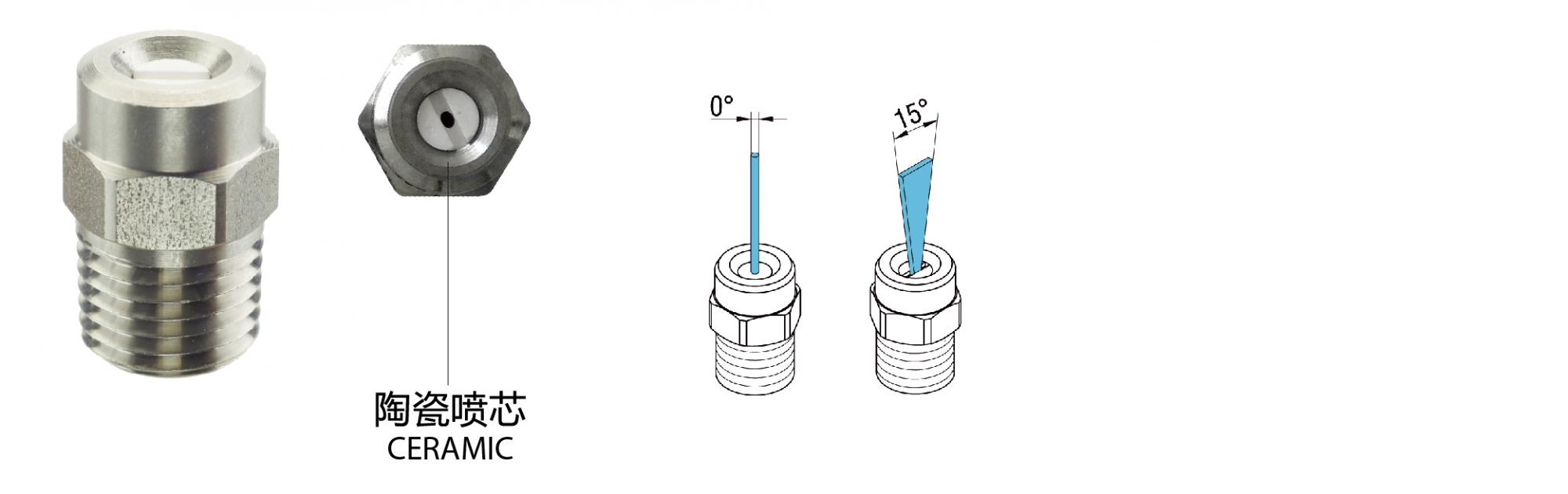

噴嘴（陶瓷噴芯）最大壓力500bar
|
編號 |
流量 |
最大壓力 |
進水口 |
角度 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
124006100 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
0° |
25 |
|
124006200 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
0° |
3 |
|
124006300 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
0° |
35 |
|
124006400 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
0° |
4 |
|
124006500 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
0° |
45 |
|
124006600 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
0° |
5 |
|
|
||||||
|
124006310 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
15° |
35 |
|
124006410 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
15° |
4 |
|
124006510 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
15° |
45 |
|
124006610 |
見“流量圖表” |
560 |
8122 |
1/4 NPT M |
15° |
5 |

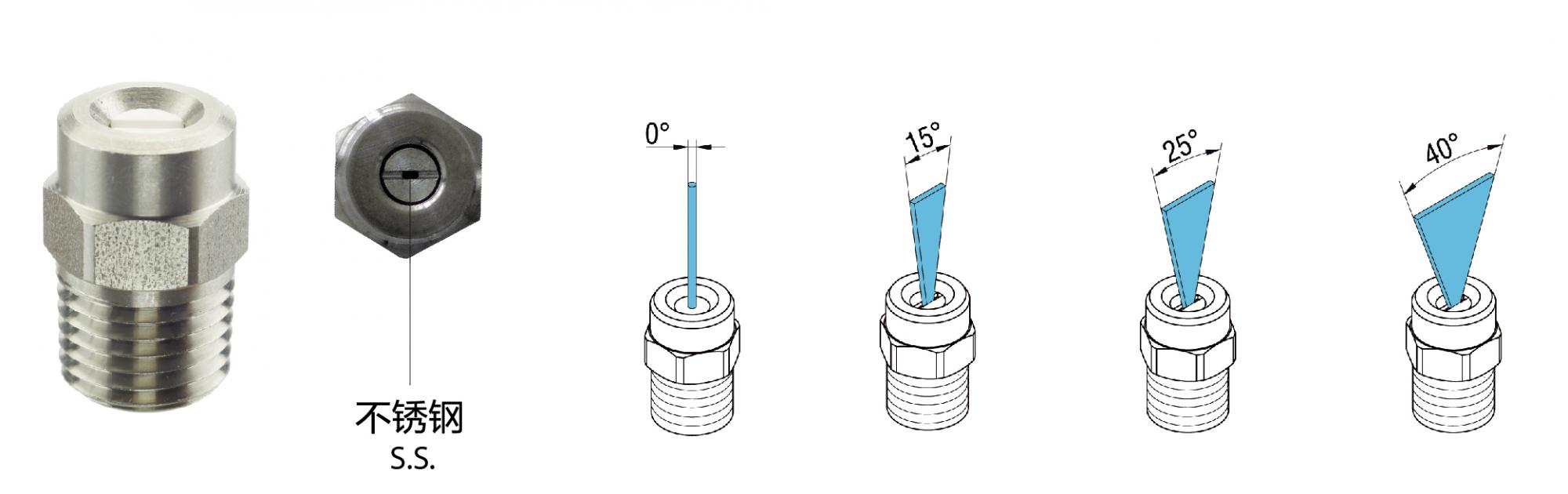

噴嘴（不銹鋼噴芯）最大壓力350bar
|
編號 |
流量 |
最大壓力 |
進水口 |
角度 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
124723100 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
3 |
|
124723110 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
35 |
|
124723120 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
4 |
|
124723130 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
45 |
|
124723140 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
5 |
|
124723150 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
55 |
|
124723160 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
6 |
|
124723170 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
65 |
|
124723180 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
7 |
|
124723190 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
75 |
|
124723200 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
8 |
|
124723210 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
85 |
|
124723220 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
0° |
9 |
|
|
||||||
|
124723230 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
2 |
|
124723240 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
25 |
|
124723250 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
3 |
|
124723260 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
35 |
|
124723270 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
4 |
|
124723280 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
45 |
|
124723290 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
5 |
|
124723300 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
55 |
|
124723310 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
6 |
|
124723320 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
65 |
|
124723330 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
7 |
|
124723340 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
75 |
|
124723350 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
8 |
|
124723360 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
85 |
|
124723370 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
15° |
9 |
|
|
||||||
|
124723380 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
2 |
|
124723390 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
25 |
|
124723400 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
3 |
|
124723410 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
35 |
|
124723420 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
4 |
|
124723430 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
45 |
|
124723440 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
5 |
|
124723450 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
55 |
|
124723460 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
6 |
|
124723470 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
65 |
|
124723480 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
7 |
|
124723490 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
75 |
|
124723500 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
8 |
|
124723510 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
85 |
|
124723520 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
25° |
9 |
|
|
||||||
|
124723530 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
3 |
|
124723540 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
35 |
|
124723550 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
4 |
|
124723560 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
45 |
|
124723570 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
5 |
|
124723580 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
55 |
|
124723590 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
6 |
|
124723600 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
65 |
|
124723610 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
7 |
|
124723620 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
75 |
|
124723630 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
8 |
|
124723640 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
85 |
|
124723650 |
見“流量圖表” |
350 |
5075 |
1/4 NPT M |
40° |
9 |

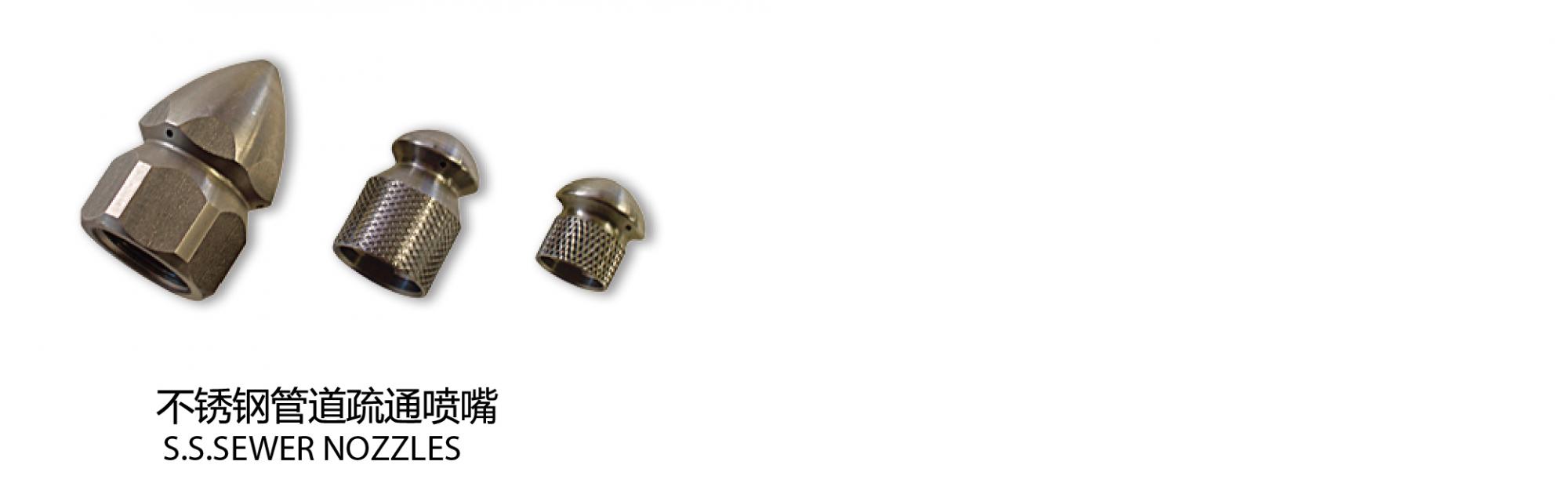

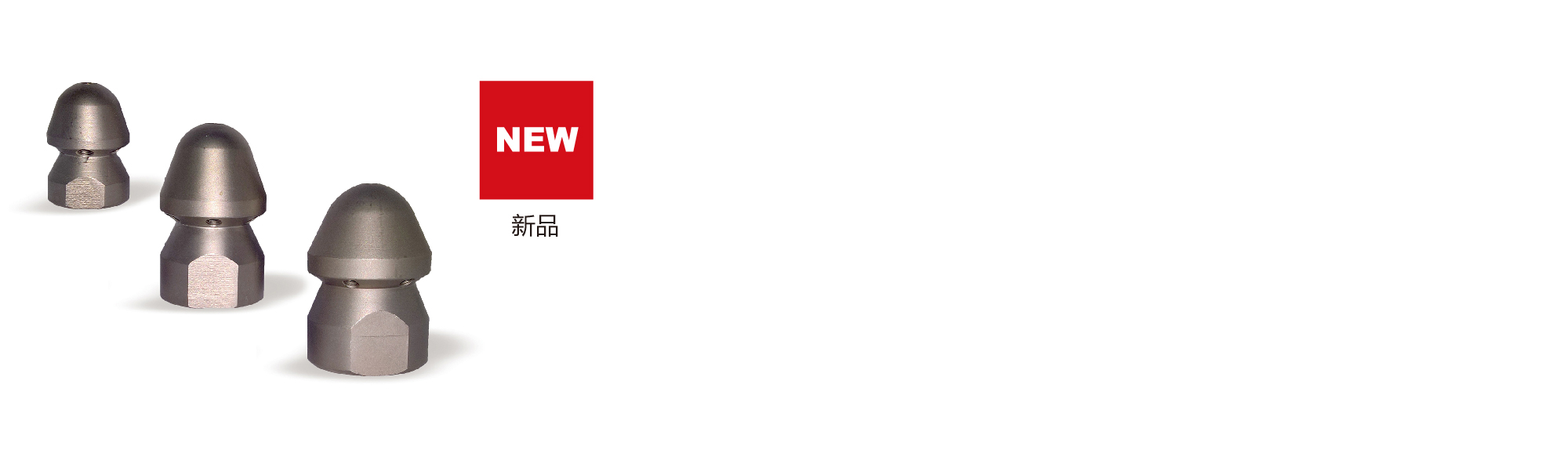

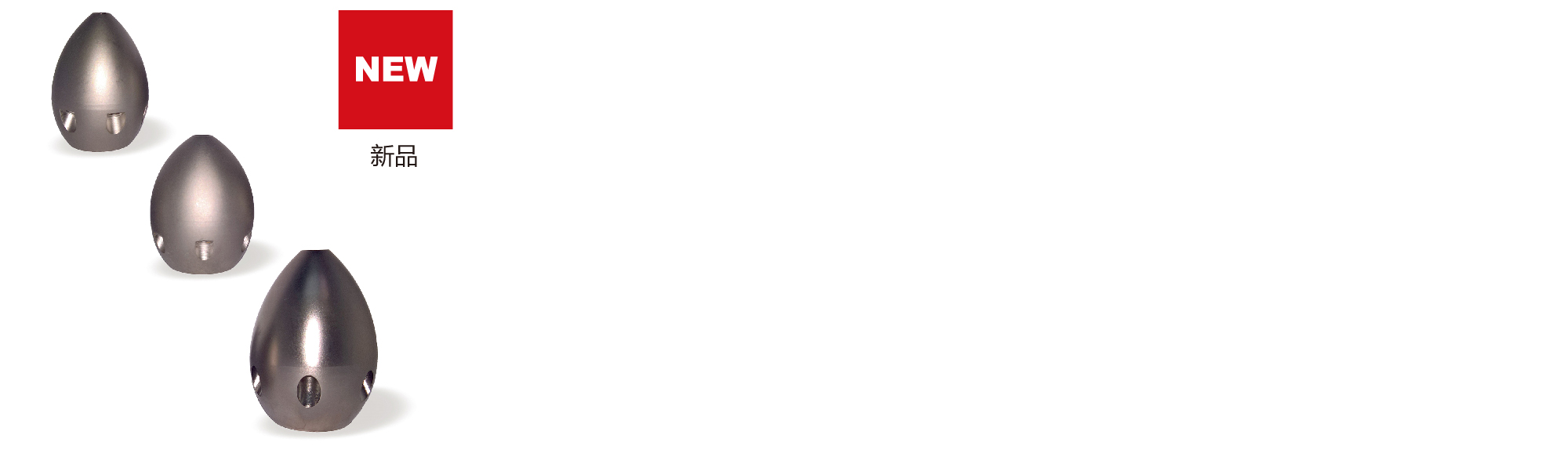

不銹鋼管道疏通噴嘴
|
編號 |
流量 |
最大壓力 |
進水口 |
孔數 |
孔徑 |
|
|
|
|
bar |
psi |
|
|
|
|
124722000 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3 |
4 |
|
124722010 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3 |
45 |
|
124722020 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3 |
55 |
|
124722030 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3 |
65 |
|
124722040 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3 |
4 |
|
124722050 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3 |
45 |
|
124722060 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3 |
55 |
|
124722070 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3 |
65 |
|
124722080 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3 |
4 |
|
124722090 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3 |
45 |
|
124722100 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3 |
55 |
|
124722110 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3 |
65 |
|
124722200 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3+1 |
4 |
|
124722210 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3+1 |
45 |
|
124722220 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3+1 |
55 |
|
124722230 |
見“流量圖表” |
350 |
5000 |
1/8" GF |
3+1 |
65 |
|
124722240 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3+1 |
4 |
|
124722250 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3+1 |
45 |
|
124722260 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3+1 |
55 |
|
124722270 |
見“流量圖表” |
350 |
5000 |
1/4" GF |
3+1 |
65 |
|
124722280 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3+1 |
4 |
|
124722290 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3+1 |
45 |
|
124722300 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3+1 |
55 |
|
124722310 |
見“流量圖表” |
350 |
5000 |
3/8" GF |
3+1 |
65 |

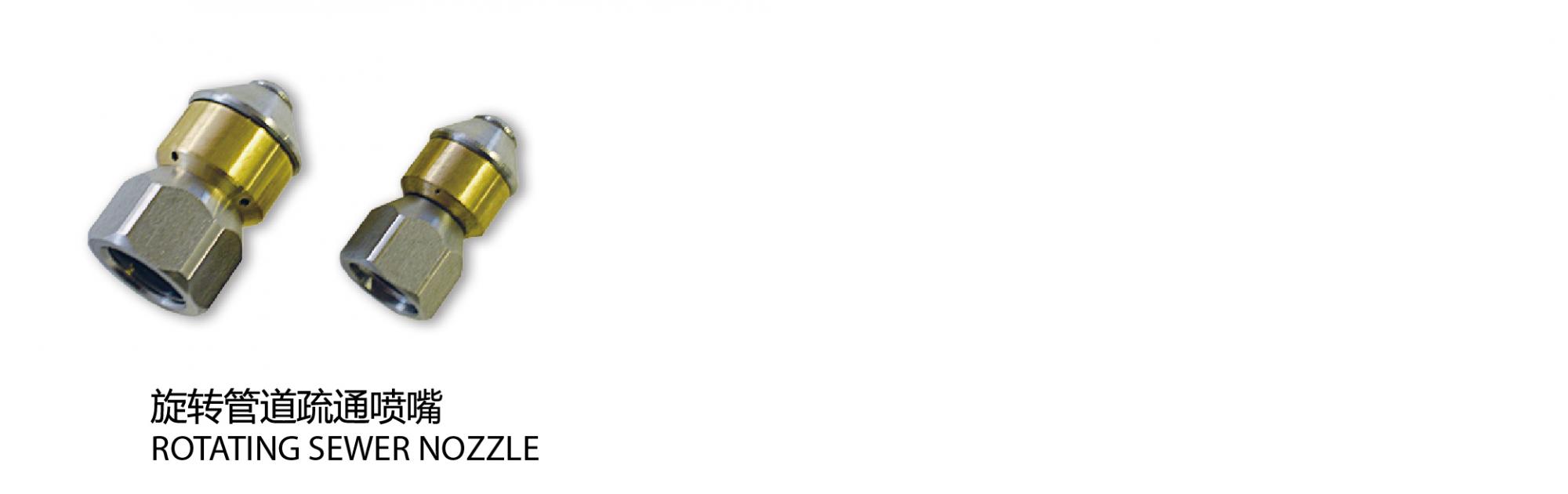

旋轉管道疏通噴嘴
|
編號 |
流量 |
最大壓力 |
進水口 |
孔數 |
孔徑 |
|
|
|
|
bar |
psi |
|
|
|
|
124722510 |
見“流量圖表” |
250 |
3625 |
1/8" GF |
3 |
4 |
|
124722520 |
見“流量圖表” |
250 |
3625 |
1/8" GF |
3 |
45 |
|
124722530 |
見“流量圖表” |
250 |
3625 |
1/8" GF |
3 |
5 |
|
124722540 |
見“流量圖表” |
250 |
3625 |
1/8" GF |
3 |
6 |
|
124722560 |
見“流量圖表” |
250 |
3625 |
1/4" GF |
3 |
4 |
|
124722570 |
見“流量圖表” |
250 |
3625 |
1/4" GF |
3 |
45 |
|
124722580 |
見“流量圖表” |
250 |
3625 |
1/4" GF |
3 |
5 |
|
124722590 |
見“流量圖表” |
250 |
3625 |
1/4" GF |
3 |
6 |
|
124722660 |
見“流量圖表” |
250 |
3625 |
3/8" GF |
3 |
8 |
|
124722610 |
見“流量圖表” |
250 |
3625 |
3/8" GF |
3 |
45 |
|
124722620 |
見“流量圖表” |
250 |
3625 |
3/8" GF |
3 |
5 |
|
124722595 |
見“流量圖表” |
250 |
3625 |
1/4" GF |
3 |
8 |
SN管道疏通噴嘴
|
編號 |
流量 |
最大壓力 |
接口規格 |
側噴嘴數量 |
前噴嘴數量 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
|
4052600003 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
6-M 6X8 |
1-M 6X8 |
20 |
|
4052600004 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
6-M 6X8 |
1-M 6X8 |
30 |
|
4052600005 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
30 |
|
4052600018 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
40 |
|
4052600019 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
50 |
|
4052600020 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
60 |
|
4052600021 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X8 |
1-M 6X8 |
50 |
|
4052600022 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X8 |
1-M 6X8 |
60 |
|
4052600023 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X8 |
1-M 6X8 |
80 |
SNO反沖噴嘴
|
編號 |
流量 |
最大壓力 |
接口規格 |
后噴嘴數量 |
前噴嘴數量 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
|
4052600015 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
6-M 6X8 |
1-M 6X8 |
20 |
|
4052600016 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
6-M 6X8 |
1-M 6X8 |
30 |
|
4052600017 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
30 |
|
4052600024 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
40 |
|
4052600025 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
50 |
|
4052600026 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
1-M 6X8 |
60 |
|
4052600027 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X8 |
1-M 6X8 |
50 |
|
4052600028 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X8 |
1-M 6X8 |
60 |
|
4052600029 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X8 |
1-M 6X8 |
80 |
SNT反沖噴嘴
|
編號 |
流量 |
最大壓力 |
接口規格 |
后噴嘴數量 |
前噴嘴數量 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
|
4052600009 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
3-M 6X6 |
4-M 6X6 |
20 |
|
4052600010 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
3-M 6X6 |
4-M 6X6 |
30 |
|
4052600011 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
4-M 6X8 |
30 |
|
4052600030 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
4-M 6X8 |
40 |
|
4052600031 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
4-M 6X8 |
50 |
|
4052600032 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X8 |
4-M 6X8 |
60 |
|
4052600033 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 8X10 |
4-M 8X10 |
50 |
|
4052600034 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 8X10 |
4-M 8X10 |
60 |
|
4052600035 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 8X10 |
4-M 8X10 |
80 |

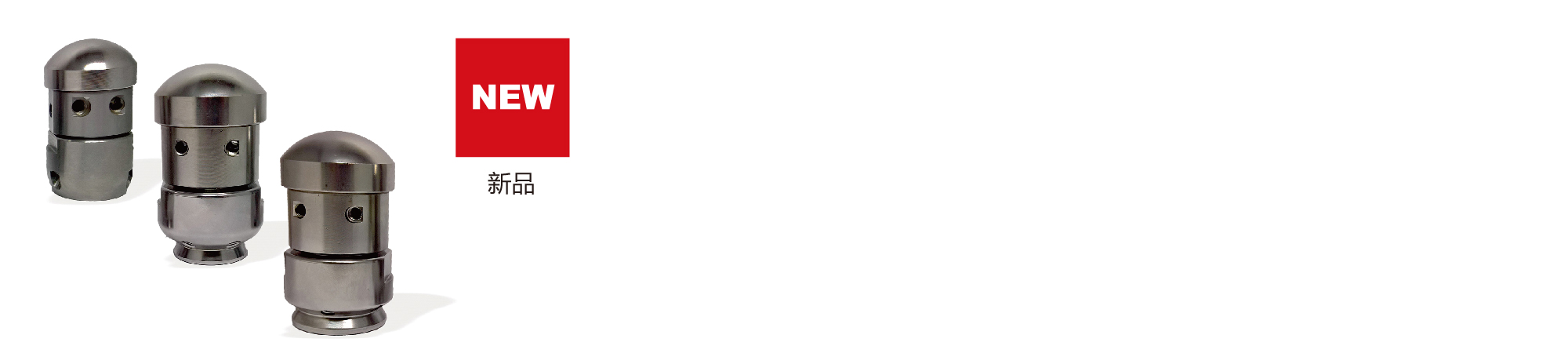

SNDH旋轉反沖噴嘴
|
編號 |
流量 |
最大壓力 |
接口規格 |
后噴嘴數量 |
前噴嘴數量 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
|
4052800009 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
3-M 6X6 |
6-M 6X6 |
20 |
|
4052800010 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
3-M 6X6 |
6-M 6X6 |
30 |
|
4052800011 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X6 |
4-M 6X6 |
30 |
|
4052800012 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X6 |
4-M 6X6 |
40 |
|
4052800013 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X6 |
4-M 6X6 |
50 |
|
4052800014 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X6 |
4-M 6X6 |
70 |
SNCH旋轉反沖噴嘴
|
編號 |
流量 |
最大壓力 |
接口規格 |
后噴嘴數量 |
前噴嘴數量 |
噴嘴尺寸 |
|
|
|
|
bar |
psi |
|
|
|
|
|
4052800000 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
3-M 6X6 |
6-M 6X6 |
20 |
|
4052800001 |
見“流量圖表” |
300 |
4350 |
1/2” GF |
3-M 6X6 |
6-M 6X6 |
30 |
|
4052800002 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X6 |
4-M 6X6 |
30 |
|
4052800003 |
見“流量圖表” |
300 |
4350 |
3/4” GF |
6-M 6X6 |
4-M 6X6 |
40 |
|
4052800004 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X6 |
4-M 6X6 |
50 |
|
4052800005 |
見“流量圖表” |
300 |
4350 |
1” GF |
6-M 6X6 |
4-M 6X6 |
70 |

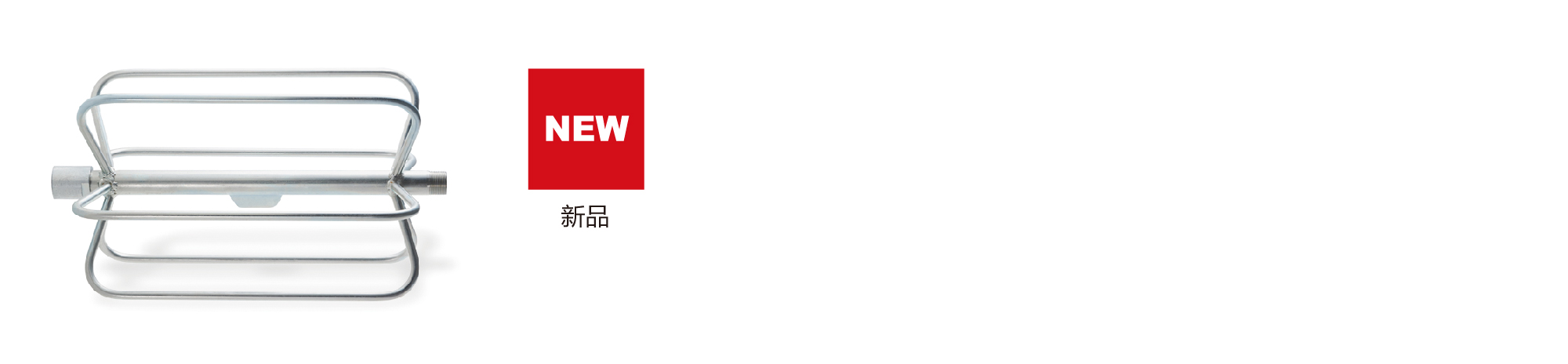

導向支架
|
編號 |
接口規格 |
尺寸 | 最大旋轉直徑 |
|
|
|
mm | ? mm |
|
G01000019 |
1/2" GM |
70 x 60 x 100 | 80 |
|
G01000020 |
1/2" GM |
80 x 70 x 100 |
100 |
|
G01000021 |
1/2" GM |
100 x 90 x 160 |
120 |

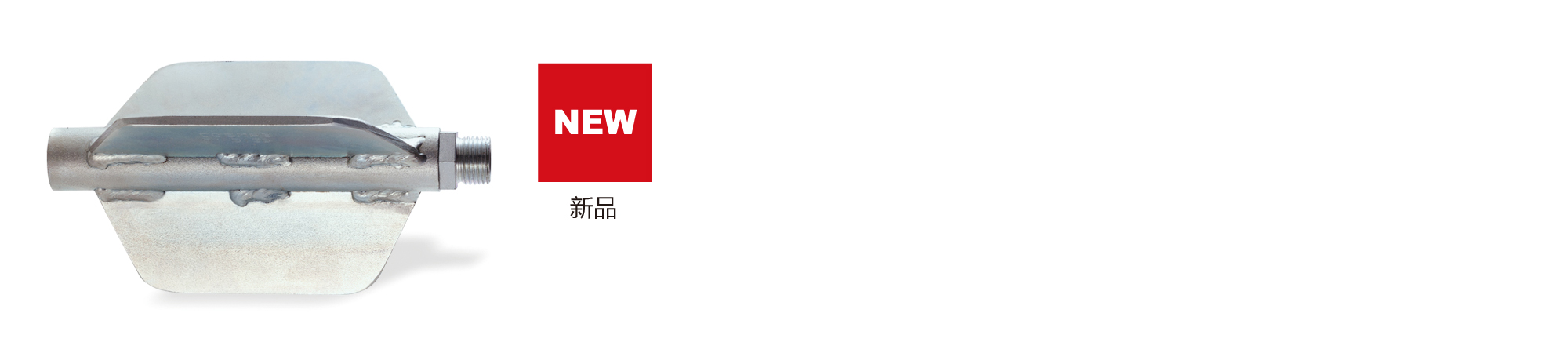

導向支架
|
編號 |
接口規格 |
尺寸 | 最大旋轉直徑 |
|
|
|
mm | ? mm |
|
G01000022 |
3/4" GM |
190 x 135 | 150 |
|
G01000023 |
1/2" GM |
190 x 135 |
150 |
